DDoptics UltraView ED 10x42 Range – Brown
Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: 440170000
Observe detail at a distance.
ED glass helps reduce colour fringing.
Laser ranging, depending on target and conditions.
At 1,000 m for a broad view.
Water protection for outdoor use.
Observe. Measure. Know more.

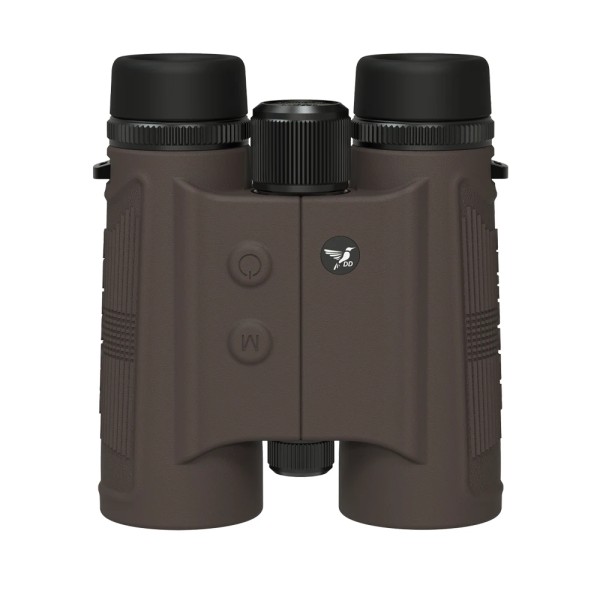

The DDoptics UltraView ED 10x42 Range in brown combines ED binoculars with an integrated laser rangefinder. Observe your subject and read the distance in the field of view without switching between two devices.
ED glass
Reduces colour fringing along high-contrast edges and supports clear detail.
Coated optics
Fully multi-coated lenses and BaK4 roof prisms with phase correction and dielectric coating.
Magnesium body
Rubber armour provides a secure grip. A tripod adapter socket supports stationary observation.
Adjustable fit
Three-position eyecups, 56–75 mm interpupillary adjustment and ±4 dioptres.
The measurement you need, in view
Measure the direct distance, read the angle or select the horizontal distance with the angle taken into account. Scan mode allows continuous measurements. Switch between metres and yards.
Ranging extends up to 2,000 m for highly reflective targets. Achievable distance depends on target size and reflectivity as well as visibility and weather conditions.
Five display brightness levels
The black LCD readout has backlighting adjustable in five levels. At low settings, the digits glow softly red in twilight. The display switches off automatically after eight seconds of inactivity.
Schematic illustration: example readings of 300 m and 8°.

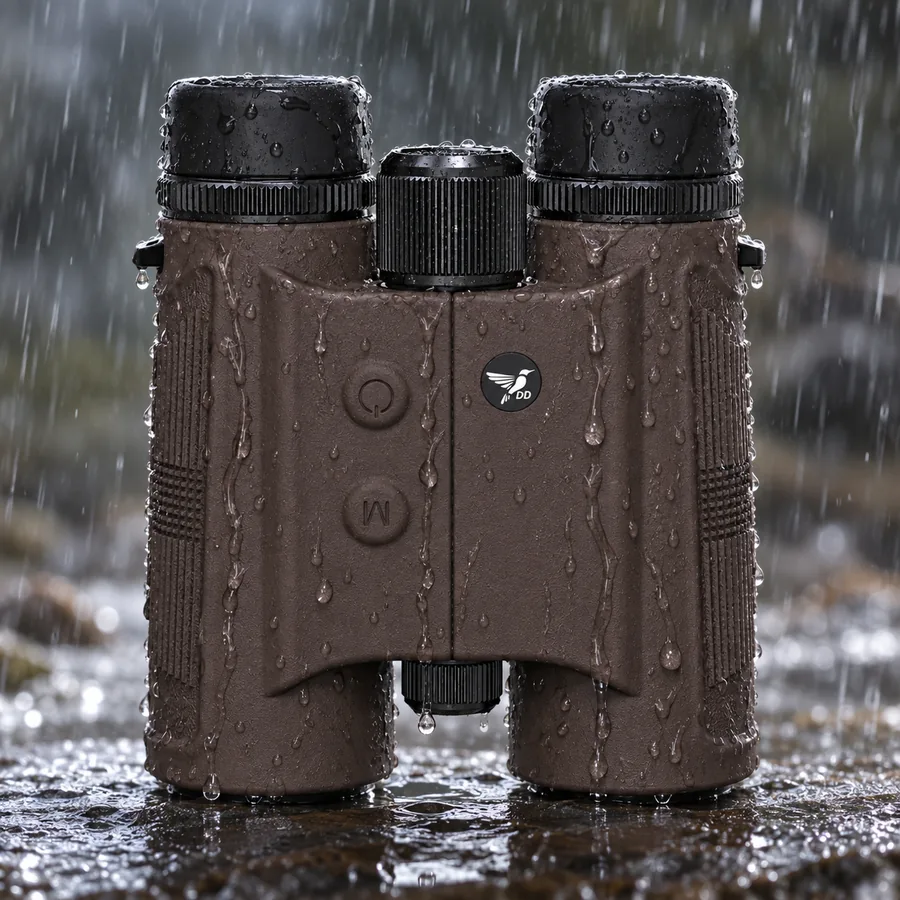

Ready when the rain arrives
The UltraView Range has IPX7 protection against temporary immersion: up to 1 m for 30 minutes. Nitrogen filling helps prevent internal optical surfaces from fogging as temperatures change.
Technical specifications
| Feature | Specification |
|---|---|
| Magnification | 10× |
| Objective diameter | 42 mm |
| Objective glass | ED (Extra-low Dispersion) |
| Prisms | BaK4 roof prisms |
| Lens coating | Fully multi-coated |
| Prism coating | Phase correction and dielectric coating |
| Light transmission | Approx. 86% |
| Field of view at 1,000 m | 114 m |
| Angular field of view | 6.5° |
| Close focus | 2 m |
| Exit pupil | 4.2 mm |
| Eye relief | 15.2 mm |
| Interpupillary distance | 56–75 mm |
| Dioptre adjustment | ±4 dpt; right eyepiece |
| Eyecups | Twist-up, three positions |
| Body | Magnesium alloy with rubber armour |
| Water protection | IPX7: 1 m / 30 min |
| Nitrogen filling | Yes |
| Display | Black LCD; backlighting dimmable in 5 levels |
| Maximum ranging distance | Up to 2,000 m on highly reflective targets; conditions apply |
| Measuring modes | Standard distance, horizontal distance, angle, scan |
| Measuring units | Metres / yards |
| Minimum measuring distance | 5 m |
| Measuring accuracy | ±0.5 m |
| Angle range | ±90° |
| Laser wavelength | 905 nm |
| Laser class | 1 |
| Automatic display shut-off | 8 s |
| Battery type | CR2, 3 V |
| Operating temperature | −10 to +50 °C |
| Dimensions | 146 × 111 × 51 mm |
| Weight | 790 g |
| Tripod adapter socket | Yes |
Brown or green – which colour suits you?
The same technology in two colours. Choose your preferred version directly from the comparison.
| Model | UltraView ED 10x42 Range BrownCurrent version |  UltraView ED10x42 Range GreenOther colour |
|---|---|---|
| Article number | 440170000 | 440170001 |
| Magnification / objective | 10× / 42 mm ED | 10× / 42 mm ED |
| Field of view at 1,000 m | 114 m | 114 m |
| Ranging distance* | Up to 2,000 m | Up to 2,000 m |
| LCD dimming | 5 levels | 5 levels |
| Close focus | 2 m | 2 m |
| Weight | 790 g | 790 g |
| Water protection | IPX7 | IPX7 |
| Choose version | View brown | View green |
*Depending on target, visibility and weather conditions.
Our tip: DDoptics Optics Cleaner
For a clear view and clean lenses: DDoptics Optics Cleaner removes grease and fingerprints from optical surfaces. Remove loose dust first, then apply a small amount to a suitable microfibre cloth and clean the surface gently.
View Optics Cleaner
The right optical cleaning cloth
The DDoptics Premium Optical Cleaning Cloth is available separately. Its 30 × 30 cm format offers ample surface for gently cleaning binocular lenses and other optical surfaces. Keep the cloth clean and free from sand and coarse particles.
View cleaning cloth
