Dentler mounting rails
100% compatible with each other and designed with zero tolerance, the two-part BASIS® system connects every weapon model with the respective rifle scope with absolute reliability. With this, Dentler has finally realized a long-standing standard from toolmaking for scope mounts.

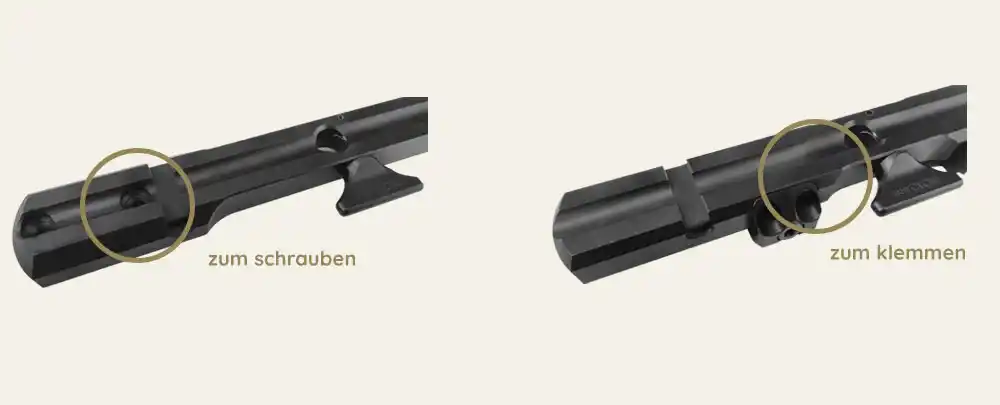

Base rail BASIS
The assembly of the BASIS base rail by Dentler takes place without changing the hunting rifle. The base rail BASIS is either clamped or screwed onto your weapon. Type of mounting depends on your weapon.
The BASIS VARIO base rail is mounted using the same principle.

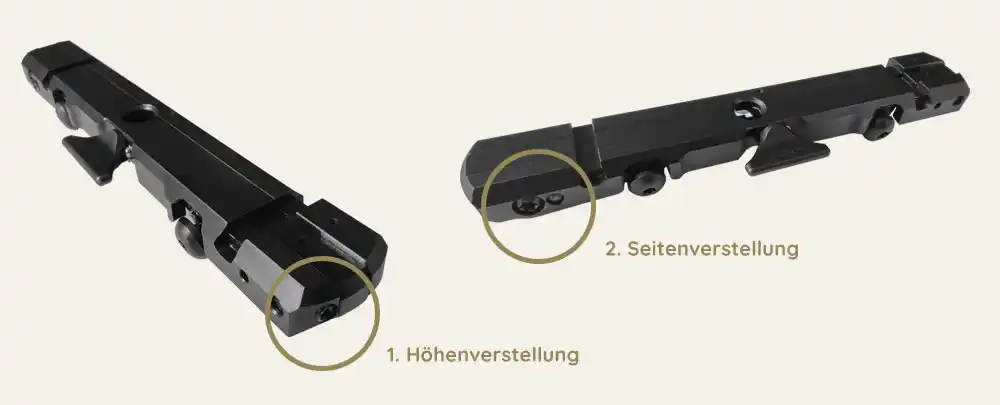

Base rail BASIS VARIO
The BASIS VARIO base rail differs from the BASIS base rail in one important detail. It has side and height adjustment. This means that your optics can be used without adjusting the reticle. But it is also screwed or clamped.
1. Height adjustment at 100 m from +2 m to -0.5 m
2. Windage adjustment at 100 m from +1.5 m to -1.5 m
These are example images, the delivered goods may differ from the illustrations (depending on the weapon type).
