DDoptics rifle scope V4 2.5-10x56 NFX Gen3 | MRAD | A4N
Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: 442511139
- Info: Dieser Artikel ist von sämtlichen Gutscheinen ausgeschlossen
- based on Gen. 3 - special version FX
- FX = More field of view & better insight
- Field of view 15m-3.7m
- less marginal area in view
- Reticle adjustment metal towers (no plastic)
- CT (clear transmission) glass (low dispersion)
- double scaling (double turn)
- Zero stop for ASV (zero stop)
- hard, tactical 0.1 MRAD click detent (1 cm/click)
- Adjustment range 184 clicks = 1.8 m at 100 m
- new design of magnification adjustment ring
- new reticle 4 (A4N) with significantly finer bars
- Accessories: 1x flip caps, cleaning cloth, DDoptics chip, targets, scopes instructions, ballistics set
Hunt to the last light of the rifle
The N-FX V4 2.5-10x56 is a rifle scope that specifically meets the requirements of night hunting. The field of view of 15 m and the good view ensure perfect conditions for quick shots, such as on a drive hunt. The 10x magnification enables a reliable addressing until the last daylight. Even long-distance shots of up to 800 m have already been completed with this scope.
The extra complex HD optics offers a high-contrast and color-true image with outstanding edge sharpness properties due to the coating specially developed for this optics, which does not allow any reflections or scattered light, even with 10x magnification. In particular, color fringes have been reduced to a minimum. Light transmission values between 92-94% ensure excellent performance at night and twilight.
Hunting A4N illuminated reticle with intelligent IFiber illuminated dot
The V4 2.5-10x56 N-FX rifle scope has the successful, modern 4N reticle.
New features
What's new about the latest generation rifle scopes?
At first glance, 3 changes immediately catch the eye:
1. The magnification adjustment ring has been noticeably changed and now provides more grip thanks to its coarser structure.
2. Reticle 4 has become significantly finer and creates more space in the middle.
3. The reticle adjustment is made of metal, is more clearly defined and has double turn and zero stop.
Adjustment range of the reticle adjustment
The rifle scope has a tactical 0.1 MRAD adjustment. For users in Europe, this means simple application in the decimal system.
Total travel: 21 MRAD
Adjustment range / click at 100m: 1cm
Adjustment range / click at 200m: 2cm
Adjustment range / click at 300m: 3cm
Adjustment range / click at 900m: 9cm
- Do you have any questions concerning this product?
- Zielfernrohr Katalog
- Testbericht Geartester
- Further products by DDoptics
Best Price Service
If you have an offer that is more than 10% below the RRP from DDoptics, you will also receive this price from us.
 |
 |
 |
| 1. Produkt online gefunden | 2. DDoptics den Link schicken | 3. DEAL abschließen |
| mehr als 10 % unter DDoptics Preis | als Nachweis | gefundenen Preis auch von uns erhalten |
Robust adjustment mechanism for demanding use
The reticle adjustment turrets of the DDoptics Generation III scopes are made of a robust aluminum alloy and are free of all plastic parts. All aluminum parts are finished with the new non-glossy DDoptics "fine-black" anodizing coating. The adjustment mechanism was changed to the tactical version, i. H. it is not only very shockproof and completely waterproof, but also hard-running and thus protected against unintentional adjustment. This means that the reticle adjustment can also be used "open" in everyday hunting, i.e. without a screw cap, in order to be able to quickly adjust the reticle depending on the situation.
Reticle quick adjustment with zero stop
The number of click adjustments made can be read and adjusted accordingly on a double scale (double turn) on the height adjustment tower. After sighting in, the reticle adjustment can be "zeroed", then the zero stop ring is turned as far as it will go. The zero setting is then countered from below using the zero stop ring in order to achieve a stop at the zero position. Starting from the zero position - assuming knowledge of the load - different shooting distances can be preset using a marking system. The windage adjustment turret is labeled with two opposing scales. Starting from the setting zero, the reticle can be preset here depending on the wind direction and wind speed or any movement of the target.
New reticle 4 for minimal target coverage
Looking through the new generation III rifle scope, the viewer immediately recognizes the practical design: The reticle in the 4N reticle is much finer and the slightly thicker, outer bars are only half as thick and are significantly further apart. This is a great advantage for the hunter, especially in poor light conditions, as the target is only minimally covered and thus a lightning-fast and safe aim is optimally supported. The reticle is in the eyepiece focal plane (2nd focal plane).
| Diopter adjustment: | -3 to +3 |
| Enlargement: | 2,5-10x |
| Twilight number: | 11,8-23,7 |
| Weight in grams: | 754 |
| Type of optics: | Rifle scope |
| Generation: | 3 |
| Compensation: | DDlucid |
| Lens diameter lens in mm: | 56 |
| Exit pupil in mm: | 11,6-5,6 |
| Field of view at 100 m (in m): | 15-3,7 |
| Interpupillary distance in mm: | 98-100 |
| Reticle: | New reticle 4 |
| Luminescent point II: | yes |
| Reticle focal plane: | 2nd focal plane |
| Reticle adjustment / click: | 0.1 MRAD |
| Reticle adjustment (scaling): | double |
| Max. adjustment range: | 18,4 MRAD |
| Parallax compensation: | 20-500-infinity |
| Surface: | fine black |

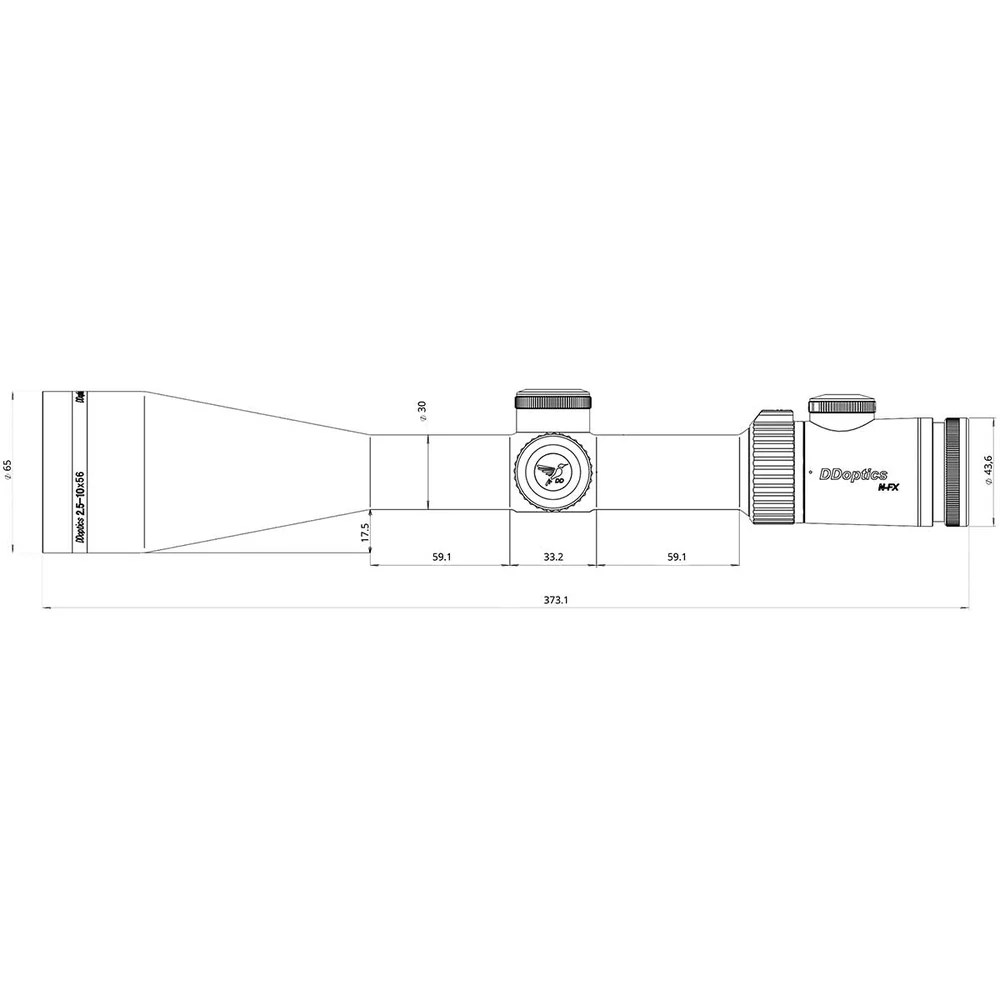

| Center tube diameter in mm: | 30 |
| ASV zero stop: | yes |
| Lens diameter outside in mm: | 65 |
| Eyepiece diameter in mm: | 43 |
| Total length in mm: | 373 |
