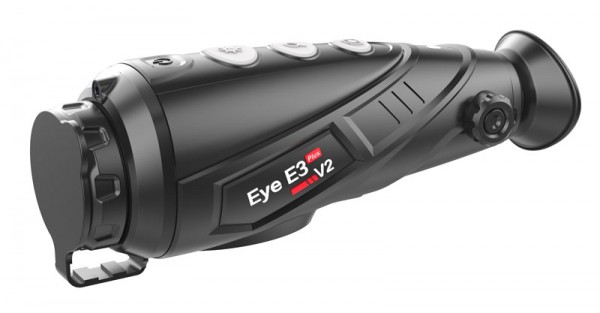

Infraray Xeye E3 Plus V2 thermal imaging device

Infiray thermal imaging camera Xeye E3 Plus V2 thermal imaging device

€1,799.00 *

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 447000213
Product information "Infiray thermal imaging camera | Xeye E3 Plus V2 | thermal imaging device"

The Xeye E3 Plus V2 thermal imaging device enables a very high-contrast thermal image with the latest generation of sensor technology. The new 12 μm ceramic detector from IRAY is installed in the device. The thermal imaging device E3 Plus V2 has a power-saving ceramic detector and a 25 mm lens. With this device, images are possible at a top distance in adverse weather conditions. The integrated, manually focusable lens enables sharp and high-contrast images. Combined with the 12 μm technology and 25 mm lens, this camera enables the same angle of view as the previous model E3 Max.

Export Conditions
The thermal imaging devices by DDoptics can be shipped freely within the European Union in accordance with the applicable EU dual-use regulation. Shipping outside the EU may only be possible with written approval from the Federal Office for Export Control (BAFA). Orders from outside the EU can therefore not be executed immediately.

Information on electrical and electronic equipment
The following information is aimed at private households that use electrical and/or electronic devices. Please observe these important instructions in the interests of environmentally friendly disposal of old devices and your own safety.

Information on the disposal of electrical and electronic equipment and the meaning of the symbol in Annex 3 to the ElektroG: Owners of old devices must collect them separately from unsorted municipal waste. Waste electrical and electronic equipment must therefore not be disposed of as unsorted municipal waste and, in particular, does not belong in household waste. Rather, these old devices should be collected separately and disposed of via the local collection and return systems. Owners of old devices must also separate old batteries and old accumulators that are not enclosed by the old device before handing them in at a collection point. Text Copyright © 2015, IT-Recht-Kanzlei, Alter Messeplatz 2 80339 Munich

Our WEEE registration number is: WEEE-Reg.-Nr. UK 34435003

Lens diameter in mm: 25
Range identification animal: 1300
Protection class: IP66
Detector: VOX detector
Field of view: 10,5°x7,9°
Pixel size: 12μm
Resolution in pixels: 384x288 ceramic sensor (low power)
Frame rate in Hz: 50
Image modes: black / white / red / bird mode / full color
Screen: LCOS HD color display 1280x960 pixels
Focus: manually
Optical magnification: 2,6
Digital zoom: 2x, 4x
WiFi: yes
Connection: USB (battery charge)
Internal memory: 16GB
Battery pack: max. 5h
Calibration: auto / manual
Distances: for short to medium distances
Tripod adapter: yes
Weight in grams: 450
Dimensions h / w / d in mm: 188x65x64
