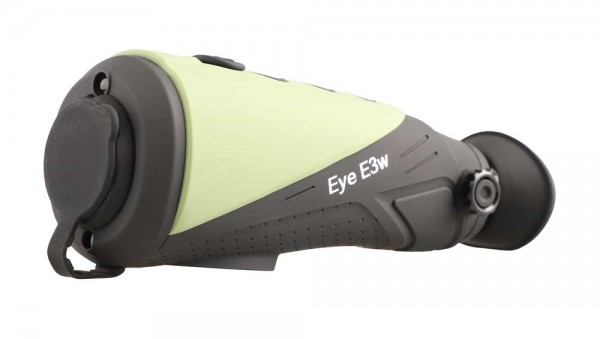

InfiRay thermal imaging camera Eye E3w

InfiRay thermal imaging camera Eye E3w thermal imaging device

€1,069.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 447000221
Product information "InfiRay thermal imaging camera | Eye E3w | thermal imaging device"

Export Conditions

The thermal imaging devices by DDoptics can be shipped freely within the European Union in accordance with the valid EU dual-use regulation. Shipping outside the EU may only be possible with written approval from the Federal Office for Export Control (BAFA). Orders from outside the EU can therefore not be executed immediately.

Information on electrical and electronic equipment

The following information is aimed at private households that use electrical and/or electronic devices. Please observe these important instructions in the interests of environmentally friendly disposal of old devices and your own safety.

Information on the disposal of electrical and electronic equipment and the meaning of the symbol in Annex 3 to the ElektroG: Owners of old devices must collect them separately from unsorted municipal waste. Waste electrical and electronic equipment must therefore not be disposed of as unsorted municipal waste and, in particular, does not belong in household waste. Rather, these old devices should be collected separately and disposed of via the local collection and return systems.

Owners of old devices must also separate old batteries and accumulators that are not enclosed by the old device from the old device before handing them in at a collection point. Text Copyright © 2015, IT-Recht-Kanzlei· Alter Messeplatz 2 80339 Munich

Our WEEE registration number is: WEEE-Reg.-Nr. UK 34435003

Lens diameter in mm: 19
Range identification animal: 180 m (human), 143 m (deer)
Detector: <40 μK (NETD)
Field of view: 19.5x14.7 degrees, 35 m
Pixel size: 17 um
Resolution in pixels: 384x288 ceramic sensor (low power)
Frame rate in Hz: 50
Image modes: white / black / red / false color / bird viewing mode
Screen: Color display 720x540 pixels
Focus: fix
Optical magnification: 1,4
Digital zoom: 4x
WiFi: yes
Connection: USB (battery charge)
Internal memory: 16GB
Battery pack: up to 15 hours continuous operation
Calibration: auto / manual
Distances: for short to medium distances
Tripod adapter: yes
Weight in grams: 320
Dimensions h / w / d in mm: 62x62x160
